Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+.
The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.

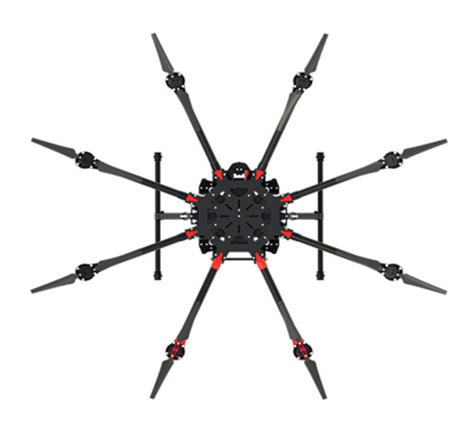

HIGHLY PORTABLE, WITH FOLDABLE ARMS
With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.
REMOVABLE UPPER CENTER BOARD

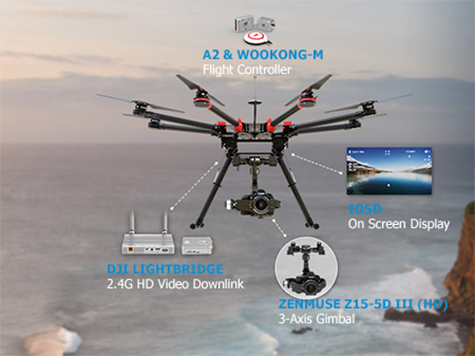

The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
NEW POWER DISTRIBUTION SYSTEM
A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
WIDE RANGE OF SHOOTING ANGLES
Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.
RETRACTABLE LANDING GEAR
COMPATIBLE WITH ZENMUSE GIMBALS
Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbal, GH4 (HD), provides unmatched stability in flight.
REDUCED VIBRATIONS, CLEARER FOOTAGE
The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. Combined with its 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design, the S1000+ has a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
INNOVATIVE ARM DESIGN
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
DJI A2 multi-rotor stabilization controller is a complete flight control system for various multi-rotor platforms, for commercial and industrial AP applications. It opens an unprecedented era of precise positioning and perfect flight control in harsh environments for flight control systems.
Its high performance antenna, low noise anti-interference front-end RF design, accurate position and speed calculating, represent comprehensive technological breakthroughs. These combined features make the positioning performance of the GPS Pro near perfection; With higher accuracy performance, larger measuring range, and a unique damping design and calibration algorithm, the IMU is able to provide stable output even in high vibration and large movement environments. The built-in receiver system directly supports the popular transmitters, and it also supports a variety of external receivers. Combined with abundant output interfaces and flexible configuration, it makes the flight controller competent for complex control and airborne equipment operation; the new dual CAN-Bus design greatly improves the data throughput and stability of the system.
Based on the technology and design philosophy of DJI’s Ace series of high-performance controllers, the A2 offers you a brand new flight experience. The A2 adopts a full metal case design and utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithm in flight control and UAV field.
GPS-Compass Pro Module
The GPS receiver of the A2 GPS-Compass Pro Module is equipped with a new high gain and high performance right-handed circular polarized (RHCP) antenna, the low noise anti-interference front-end RF design and the optimized localization algorithm, which provides the GPS Pro with stronger anti-interference performance, a stronger ability to capture satellite signals and a more accurate position hold calculating ability. All these features have enhanced its position locking capability.
High Sensitive Built-in Damper IMU Module
The interior sensor of the A2 IMU has been upgraded comprehensively, and with higher accuracy performance, larger measuring range, and a unique damping design and calibration algorithm, the IMU is able to provide stable output even with high vibration and a large movement environment. The advanced sensor temperature compensation algorithm and industrialized accurate calibration algorithm gives the IMU excellent performance. With the DJI innovative damping structure and material, it is unnecessary to install a framework or cushioning, you can simply stick it on the aircraft. Small size and weight allow easy installation in a tight space, it simplifies the installation process, for various aircraft sizes.
Built-in 2.4Ghz DR16 Receiver
The A2 has a built-in 2.4Ghz Radio technology DESST receiver system (the newest DJI Enhanced Spread Spectrum Technology), which supports the Futaba FASST series of transmitters. It can support 16 channels. Futaba transmitter users can use the system without any external receiver, which has greatly simplified the complexity of the system and improved the security of the remote control system.
Support for external receivers
A2 system has two reserved JR and SPEKTRUM satellite receiver ports, which support JR and SPEKTRUM satellite receivers. It currently supports SPEKTRUM DX6I, DX8 transmitters, other JR or SPEKTRUM series will be supported in the future.
The system supports external receivers including the Futaba S-Bus receiver, PPM receiver.
Dual CAN-Bus system
The A2 system has a dual CAN-Bus design, which means that the system data throughput will be doubled and the extendibility is improved. At the same time, the important data and the non-critical data are assigned respectively on different CAN-Bus ports, which greatly improves the system stability.
More output interfaces
The A2 is equipped with a minimum of twelve output channels, users can easily use it to control an Oct-rotor, and the other four channels can be used as a general output interface, for example, to control the DJI retractable landing gear on S1000, to control Gimbal or camera switch, etc.
